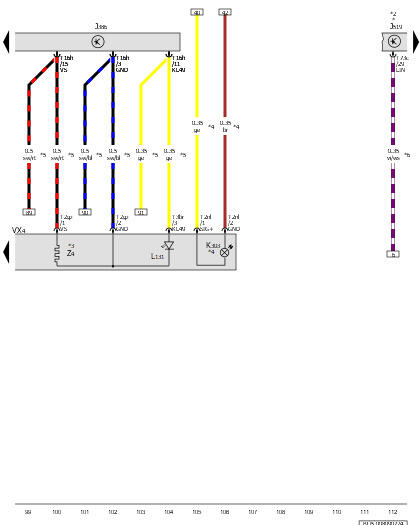

Driver Door Control Module, Vehicle Electrical System Control Module, Driver Exterior Rearview Mirror
J386
Driver Door Control Module
J519
Vehicle Electrical System Control Module
K303
Blind Spot Detection Warning Lamp in Left Exterior Mirror
L131
Driver Exterior Rearview Mirror Turn Signal Bulb
T2gz
2-Pin Connector, Black
T2nl
2-Pin Connector, Black
T3br
3-Pin Connector, Black
T16h
16-Pin Connector, Black
T73c
73-Pin Connector, Black
VX4
Driver Exterior Rearview Mirror
Z4
Heated Driver Exterior Rearview Mirror
*
Refer to Applicable Wiring Diagram for Ground Concept in Vehicle Interior
*2
Refer to Applicable Wiring Diagram for Fuses in Vehicle Interior
*3
For Vehicles with Heated Exterior Rearview Mirrors
*4
For Vehicles with Blind Spot Detection
*5
Depending on Equipment
*6
For Vehicles with Ambient Lighting
