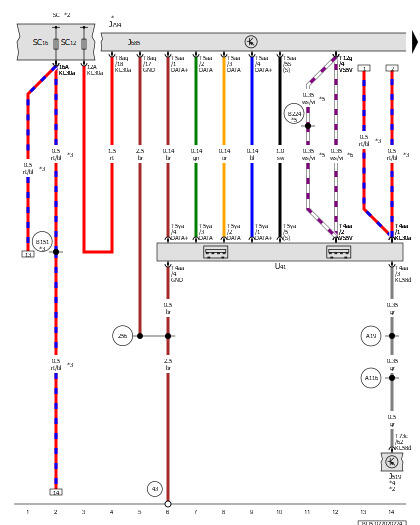

Vehicle Electrical System Control Module, Information Electronics Control Module 1, Fuse Panel C, USB Connection 1
J519
Vehicle Electrical System Control Module
J685
Front Information Display Control Head
J794
Information Electronics Control Module 1
SC
Fuse Panel C
SC12
Fuse 12 (On Fuse Panel C)
SC16
Fuse 16 (On Fuse Panel C)
T4aa
4-Pin Connector, Red
T5aa
5-Pin Connector, Yellow
T5ya
5-Pin Connector, Green
T8aq
8-Pin Connector, Black
T12g
12-Pin Connector, Gray
T73c
73-Pin Connector, Black
U41
USB Connection 1
43
Ground Connection on A-Pillar, Lower Right
256
Ground Connection 2 (in Radio Wiring Harness)
A19
Connection 58d (in Instrument Panel Wiring Harness)
A116
Connection 58d (in Instrument Panel Wiring Harness) 2
B151
Positive Connection 3 (30a) (in Interior Wiring Harness)
B224
Radio Connection 1 (in Interior Wiring Harness)
*
Refer to the Applicable Multimedia System Wiring Diagram
*2
Refer to Applicable Wiring Diagram for Fuses in Vehicle Interior
*3
Depending on Equipment
*4
Refer to Applicable Wiring Diagram for Ground Concept in Vehicle Interior
*5
For Vehicles with USB Charging Socket
*6
For Vehicles Without USB Charging Socket
