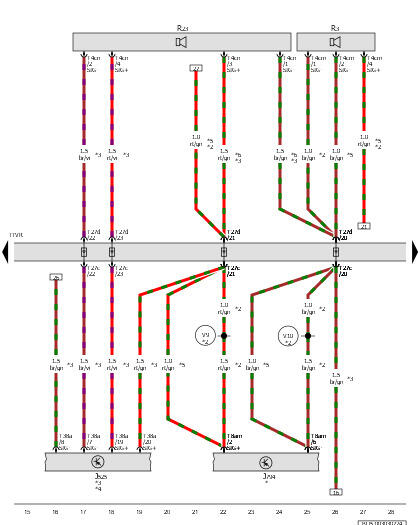

Digital Sound System Control Module, Information Electronics Control Module 1, Right Front Speaker, Right Front Bass Speaker

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

J525

Digital Sound System Control Module

J794

Information Electronics Control Module 1

R3

Right Front Speaker

R23

Right Front Bass Speaker

T4cm

4-Pin Connector, Black

T4cn

4-Pin Connector, Black

T8am

8-Pin Connector, Brown

T27c

27-Pin Connector, Black

T27d

27-Pin Connector, Black

T38a

38-Pin Connector, Black

TTVR

Right Front Door Coupling Point

V9

Right Front Speaker Positive Connection (in Speaker Wiring Harness)

V10

Right Front Speaker Negative Connection (in Speaker Wiring Harness)

*

Refer to the Applicable Multimedia System Wiring Diagram

*2

For Vehicles with 6 Speakers

*3

For Vehicles with Sound System

*4

Refer to Applicable Sound System Wiring Diagram

*5

Depending on Equipment

*6

For Vehicles with US Equipment
