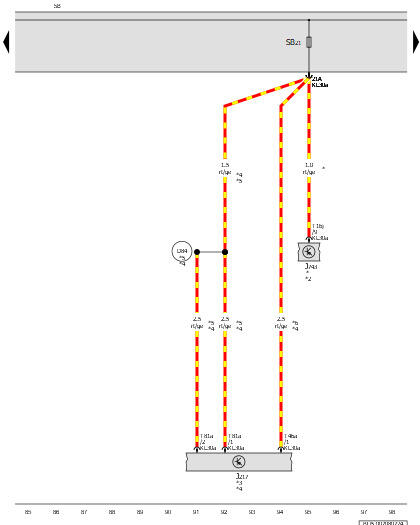

Transmission Control Module, Dual Clutch Transmission MECHATRONIC, Fuse Panel B

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

J217

Transmission Control Module

J743

Dual Clutch Transmission Mechatronic

SB

Fuse Panel B

SB21

Fuse 21 (On Fuse Panel B)

T16j

16-Pin Connector, Black

T46a

46-Pin Connector, Black

T81a

81-Pin Connector, Black

D84

Automatic Transmission Connection (in Engine/Motor Compartment Wiring Harness)

*

For Vehicles with Automatic Transmission (DSG)

*2

Refer to Applicable Wiring Diagram for Automatic Transmission (DSG)

*3

Refer to Applicable Wiring Diagram for Automatic Transmission

*4

For Vehicles with Automatic Transmission

*5

For Vehicles with a 1.4L Engine

*6

For Vehicles with 1.5L Gasoline Engine
