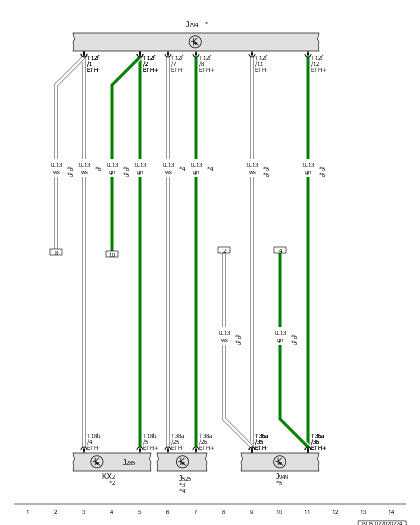

Digital Sound System Control Module, Information Electronics Control Module 1, Control Module For Emergency Call Module And Communication Unit, Instrument Cluster

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

J285

Instrument Cluster Control Module

J525

Digital Sound System Control Module

J794

Information Electronics Control Module 1

J949

Control Module for Emergency Call Module and Communication Unit

KX2

Instrument Cluster

T12f

12-Pin Connector, Green

T18b

18-Pin Connector, Black

T36a

36-Pin Connector, Black

T38a

38-Pin Connector, Black

*

Refer to the Applicable Multimedia System Wiring Diagram

*2

Refer to Applicable Wiring Diagram for Instrument Cluster

*3

Refer to Applicable Sound System Wiring Diagram

*4

For Vehicles with Sound System

*5

For Vehicles with Emergency Call Module

*6

Depending on Equipment
