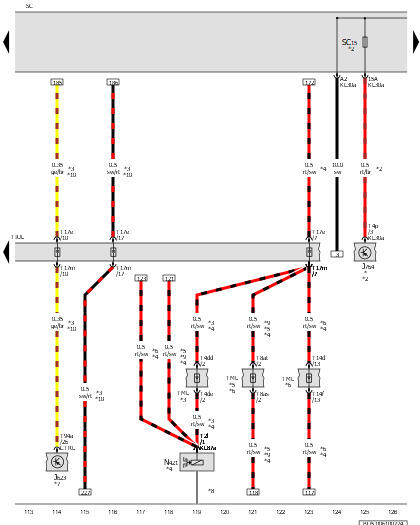

Engine/Motor Control Module, Electronic Steering Column Lock Control Module, Compressor Magnetic Clutch, Fuse Panel C

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

J623

Engine/Motor Control Module

J764

Electronic Steering Column Lock Control Module

N421

Compressor Magnetic Clutch

Fuse Panel C

SC15

Fuse 15 (On Fuse Panel C)

T2l

2-Pin Connector, Brown

T4dd

4-Pin Connector, Black

T4de

4-Pin Connector, Black

T4p

4-Pin Connector, Black

T8as

8-Pin Connector, Black

T8at

8-Pin Connector, Black

T14d

14-Pin Connector, Black

T14f

14-Pin Connector, Black

T17e

17-Pin Connector, Blue

T17m

17-Pin Connector, Blue

T94a

94-Pin Connector, Black

TIUL

Coupling Point in Interior, Bottom Left

TML

Coupling Point in Engine/Motor Compartment, Left

Refer to the Applicable Access/Start Authorization System Wiring Diagram

For Vehicles with Power Steering Column Adjustment

For Vehicles with a 1.4L Engine

Depending on Equipment

For Vehicles with 1.5L Gasoline Engine

For Vehicles with 2.0L Gasoline Engine

Refer to Applicable Engine Wiring Diagram

Ground Supply via the Housing

For Vehicles with a 2.0L Engine

*10

For Vehicles with Automatic Transmission
