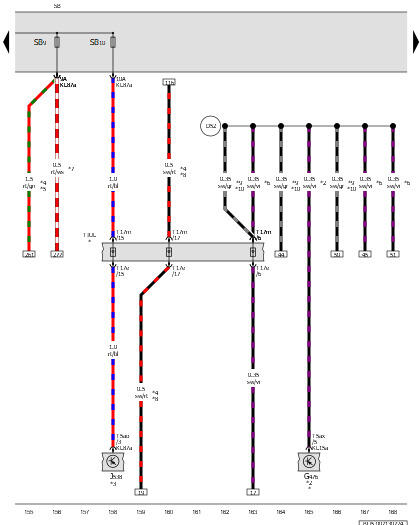

Clutch Position Sensor, Fuel Pump Control Module, Fuse Panel B

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

G476

Clutch Position Sensor

J538

Fuel Pump Control Module

SB

Fuse Panel B

SB9

Fuse 9 (On Fuse Panel B)

SB10

Fuse 10 (On Fuse Panel B)

T5ao

5-Pin Connector, Black

T5ax

5-Pin Connector, Black

T17e

17-Pin Connector, Blue

T17m

17-Pin Connector, Blue

TIUL

Coupling Point in Interior, Bottom Left

D52

Positive Connection (15a) (in Engine/Motor Compartment Wiring Harness)

*

Refer to Applicable Engine Wiring Diagram

*2

For Vehicles with a Manual Transmission

*3

Refer to Applicable Fuel System Wiring Diagram

*4

For Vehicles with a 1.4L Engine

*5

For Vehicles with 1.5L Gasoline Engine

*6

For Vehicles Without Engine Remote Start

*7

For Vehicles with a 2.0L Engine

*8

For Vehicles with Automatic Transmission

*9

For Vehicles with Engine Remote Start

*10

For Vehicles with Engine Remote Start Setup
