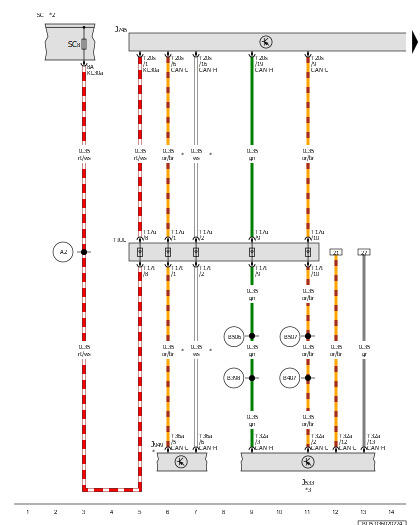

Data Bus On Board Diagnostic Interface, Cornering Lamp And Headlamp Range Control Module, Control Module For Emergency Call Module And Communication Unit, Fuse Panel C

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

J533

Data Bus on Board Diagnostic Interface

J745

Cornering Lamp and Headlamp Range Control Module

J949

Control Module for Emergency Call Module and Communication Unit

SC

Fuse Panel C

SC8

Fuse 8 (On Fuse Panel C)

T17t

17-Pin Connector, Black

T17u

17-Pin Connector, Black

T20s

20-Pin Connector, Brown

T32a

32-Pin Connector, Black

T36a

36-Pin Connector, Black

TIUL

Coupling Point in Interior, Bottom Left

A2

Positive Connection (15) (in Instrument Panel Wiring Harness)

B398

Comfort System CAN Bus, High Connection 2 (in Main Wiring Harness)

B407

Comfort System CAN Bus, Low Connection 2 (in Main Wiring Harness)

B506

Comfort CAN Bus High Connection (in Interior Wiring Harness)

B507

Comfort CAN Bus Low Connection (in Interior Wiring Harness)

*

For Vehicles with Emergency Call Module

*2

Refer to Applicable Wiring Diagram for Fuses in Vehicle Interior

*3

Refer to Applicable Wiring Diagram for Data Bus Networking
