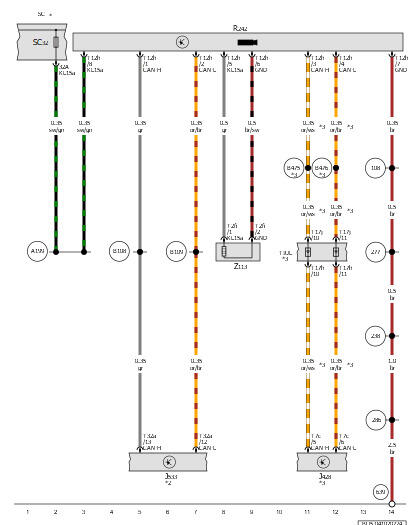

Control Module For Adaptive Cruise Control, Data Bus On Board Diagnostic Interface, Driver Assistance Systems Front Camera, Fuse Panel C, Window Defogger For Front Sensor System
J428
Control Module for Adaptive Cruise Control
J533
Data Bus on Board Diagnostic Interface
R242
Driver Assistance Systems Front Camera
SC
Fuse Panel C
SC32
Fuse 32 (On Fuse Panel C)
T2fi
2-Pin Connector, Black
T7c
7-Pin Connector, Black
T12h
12-Pin Connector, Brown
T17h
17-Pin Connector, Brown
T17j
17-Pin Connector, Brown
T32a
32-Pin Connector, Black
TIUL
Coupling Point in Interior, Bottom Left
Z113
Window Defogger for Front Sensor System
108
Ground Connection 2 (in Left Front Wiring Harness)
238
Ground Connection 1 (in Interior Wiring Harness)
277
Ground Connection 3 (in Interior Wiring Harness)
286
Ground Connection 8 (in Interior Wiring Harness)
639
Ground Connection on Left A-Pillar
A199
Positive Connection 4 (15a) (in Instrument Panel Wiring Harness)
B108
CAN Bus Extended High Connection 1 (in Main Wiring Harness)
B109
CAN Bus Extended Low Connection 1 (in Main Wiring Harness)
B475
Connection 11 (in Main Wiring Harness)
B476
Connection 12 (in Main Wiring Harness)
*
Refer to Applicable Wiring Diagram for Fuses in Vehicle Interior
*2
Refer to Applicable Wiring Diagram for Data Bus Networking
*3
For Vehicles with Control Module for Adaptive Cruise Control
