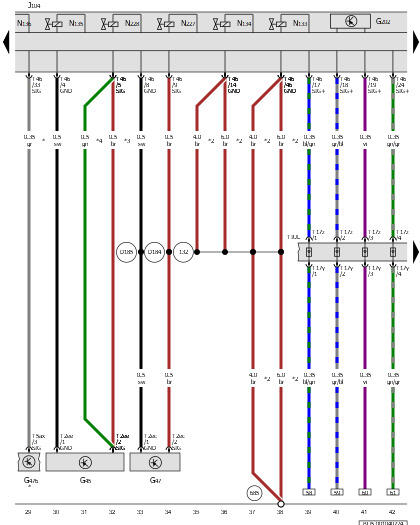

Right Front Abs Wheel Speed Sensor, Left Front Abs Wheel Speed Sensor, Clutch Position Sensor, Abs Control Module
G45
Right Front ABS Wheel Speed Sensor
G47
Left Front ABS Wheel Speed Sensor
G202
Rotation Rate Sensor
G476
Clutch Position Sensor
J104
ABS Control Module
N133
Right Rear ABS Inlet Valve
N134
Left Rear ABS Inlet Valve
N135
Right Rear ABS Outlet Valve
N136
Left Rear ABS Outlet Valve
N227
Driving Dynamics Regulation High Pressure Switch Valve 1
N228
Driving Dynamics Regulation High Pressure Switch Valve 2
T2ec
2-Pin Connector, Black
T2ee
2-Pin Connector, Black
T5ax
5-Pin Connector, Black
T17y
17-Pin Connector, Black
T17z
17-Pin Connector, Black
T46
46-Pin Connector, Black
TIUL
Coupling Point in Interior, Bottom Left
132
Ground Connection 3 (in Engine/Motor Compartment Wiring Harness)
685
Ground Connection 1 on Right Front Longitudinal Member
D184
Left Front Speed Sensor Positive Connection (in Engine/Motor Compartment Wiring Harness)
D185
Left Front Speed Sensor Negative Connection (in Engine/Motor Compartment Wiring Harness)
*
For Vehicles with a Manual Transmission
*2
Depending on Equipment
*3
For Vehicles with Adaptive Chassis
*4
For Vehicles Without Adaptive Chassis
