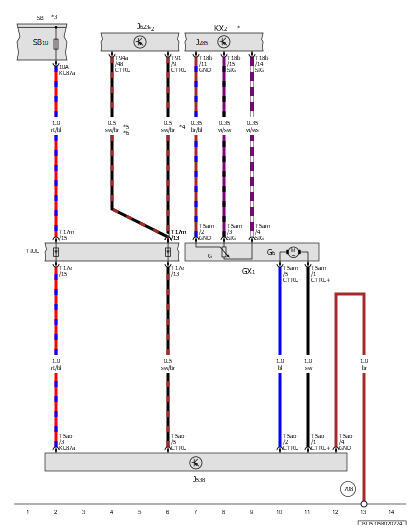

Fuel Delivery Unit, Fuel Pump Control Module, Engine/Motor Control Module, Instrument Cluster, Fuse Panel B

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

G

Fuel Level Sensor

GX1

Fuel Delivery Unit

G6

Transfer Fuel Pump

J285

Instrument Cluster Control Module

J538

Fuel Pump Control Module

J623

Engine/Motor Control Module

KX2

Instrument Cluster

SB

Fuse Panel B

SB10

Fuse 10 (On Fuse Panel B)

T5am

5-Pin Connector, Black

T5ao

5-Pin Connector, Black

T17e

17-Pin Connector, Blue

T17m

17-Pin Connector, Blue

T18b

18-Pin Connector, Black

T91

91-Pin Connector, Black

T94a

94-Pin Connector, Black

TIUL

Coupling Point in Interior, Bottom Left

708

Ground Connection 2 on Right Rear Chassis Side Member

*

Refer to Applicable Wiring Diagram for Instrument Cluster

*2

Refer to Applicable Engine Wiring Diagram

*3

Refer to Applicable Wiring Diagram for Fuses in Engine/Motor Compartment

*4

For Vehicles with 2.0L Gasoline Engine

*5

For Vehicles with 1.5L Gasoline Engine

*6

For Vehicles with a 1.4L Engine
