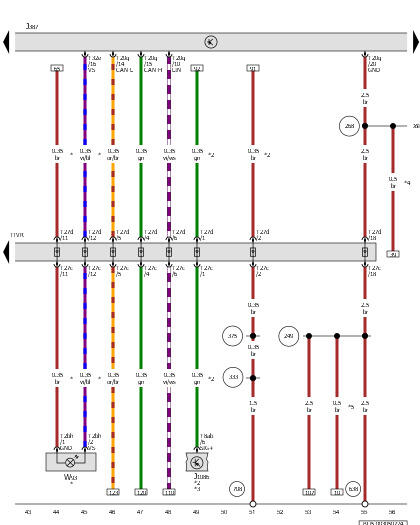

Front Passenger Door Control Module, Blind Spot Detection Control Module, Passenger Side Entry Lamp
J387
Front Passenger Door Control Module
J1086
Blind Spot Detection Control Module
T2bh
2-Pin Connector, Black
T8ab
8-Pin Connector, Black
T20q
20-Pin Connector, White
T27c
27-Pin Connector, Black
T27d
27-Pin Connector, Black
T32e
32-Pin Connector, Blue
TTVR
Right Front Door Coupling Point
W93
Passenger Side Entry Lamp
249
Ground Connection 2 (in Interior Wiring Harness)
268
Ground Connection 2 (in Front Passenger Door Wiring Harness)
333
Ground Connection 5 (in Rear Wiring Harness)
375
Ground Connection 10 (in Main Wiring Harness)
638
Ground Connection on Right A-Pillar
708
Ground Connection 2 on Right Rear Chassis Side Member
*
Depending on Equipment
*2
For Vehicles with Blind Spot Detection
*3
Refer to Applicable Lane Change Assistance Wiring Diagram
*4
For Vehicles with Ambient Lighting
*5
For Vehicles with Access/Start Authorization System
