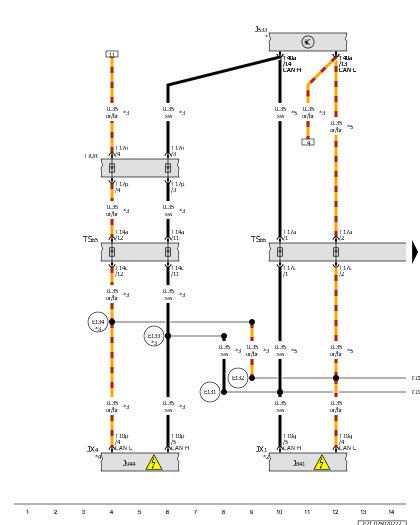

Electric Drive Power And Control Electronics, Electric Drive Power And Control Electronics 2, Data Bus On Board Diagnostic Interface
JX1
Electric Drive Power and Control Electronics
JX4
Electric Drive Power and Control Electronics 2
J533
Data Bus on Board Diagnostic Interface
J841
Electric Drive Control Module
J944
Electric Drive Control Module 2
T10p
10-Pin Connector, Black
T10q
10-Pin Connector, Black
T14a
14-Pin Connector, Black
T14c
14-Pin Connector, Black
T17a
17-Pin Connector, Black
T17c
17-Pin Connector, Black
T17n
17-Pin Connector, Brown
T17p
17-Pin Connector, Brown
T40a
40-Pin Connector, Black
TIUR
Coupling Point in Interior, Bottom Right
TS65
Front Suspension Coupling Point
TS66
Rear Suspension Coupling Point
E131
CAN Bus Drive High Connection 5 (in Engine Wiring Harness)
E132
CAN Bus Drive Low Connection 5 (in Engine Wiring Harness)
E133
CAN Bus Drive High Connection 6 (in Engine Wiring Harness)
E134
CAN Bus Drive Low Connection 6 (in Engine Wiring Harness)
*
Refer to Applicable Wiring Diagram for Data Bus on Board Diagnostic Interface
*2
Refer to Applicable Rear Axle Electric Drive System Wiring Diagram
*3
For AWD Vehicles
*4
Refer to Applicable Front Axle Electric Drive System Wiring Diagram
*5
For Rear Wheel Drive Vehicles
