Rear Axle Camber, Adjusting: Notes

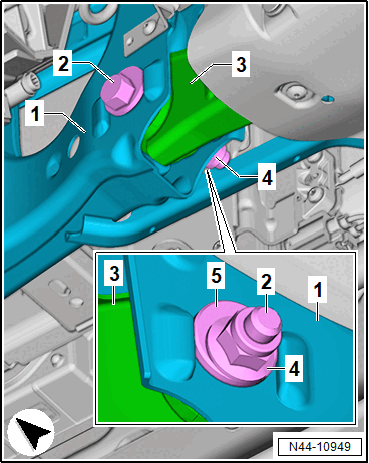

-- Loosen the nut -4- on the inner spring link -3-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Adjust the camber by rotating the eccentric bolt -2-.

Tip

The maximum adjustment range is 90° to left or right of the center position.

-- Tighten the new nut -4-, at the same time counterhold at the eccentric screw -2-.

-- Check the camber specified value. Refer to Axle Alignment Specified Values  .
