SUBFRAME Retaining Bracket, Replacing: Notes

WARNING: This page is about a different car, the 2025 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

If welding, soldering or cutting with spark-producing tools in foamed areas hazardous gases are produced.

- Never weld, solder or separate within 15 mm of molded foam parts.

- Perform the procedures with extraction.

Pay attention to the safety precautions. Refer to General Information; Body Repairs, Body Collision Repair ; Safety Precautions.

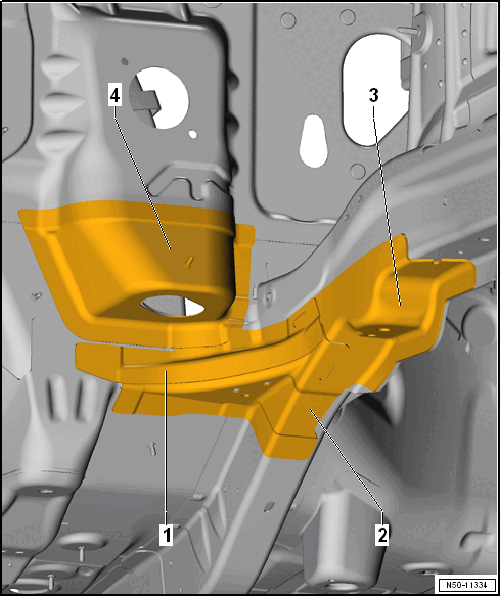

Fig 1: Subframe Mounting Bracket And Adjacent Components Location

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Upper Longitudinal Member Reinforcement
- The upper longitudinal member reinforcement -1- and lower longitudinal member reinforcement -2- is supplied as "assembly replacement part".
Lower Longitudinal Member Reinforcement
- The lower longitudinal member reinforcement -2- and upper longitudinal member reinforcement -1- is supplied as "assembly replacement part".
Subframe Retaining Bracket
End Plate
