Hood Hinge Reinforcement, Replacing: Installing: Welding
WARNING: This page is about a different car, the 2025 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

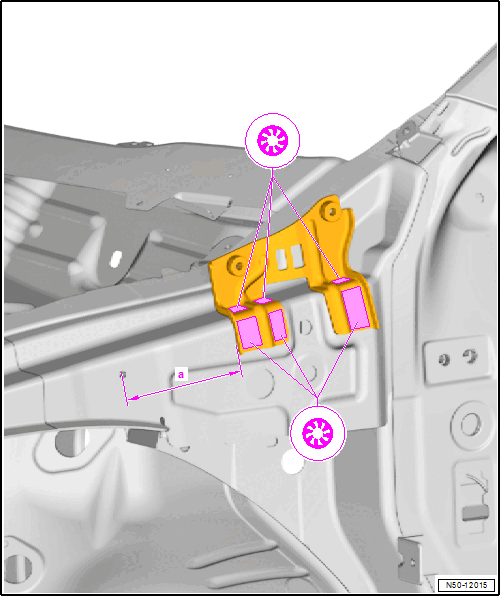

-- Fit and secure the hinge reinforcement according to the dimension -a-.
Dimension -a- = 117 mm
-- Check the fit with attachments.
-- Weld the hinge reinforcement using a gas-shielded arc plug weld seam.
