Front Longitudinal Member, Replacing, Left Partial Section: Installing: Welding

WARNING: This page is about a different car, the 2025 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

The straight line weld points must be as far as possible from the outer edge of the weld flange for strength.

Fig 1: A-Pillar Reinforcement Installation (2 of 5)

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

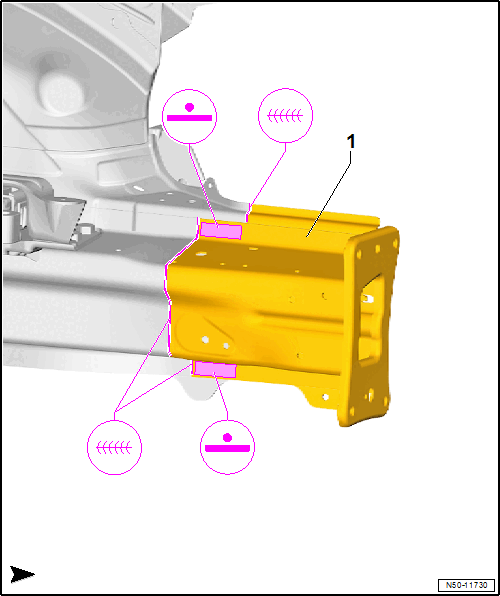

Fig 2: Longitudinal Member Installation (Left Partial Section)

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Fit the new part -1- to the vehicle resting on the Alignment Bracket Set and secure.

-- Check the fit with attachments.

-- Weld the front longitudinal member with a gas-shielded arc continuous weld seam.

-- Weld the cover plate for the longitudinal member with a gas-shielded arc continuous weld seam.

NOTE:

The gas-shielded arc continuous weld seam cannot be reworked (sanded or smoothed).

-- Weld the front longitudinal member on the offset with the cover plate for the longitudinal member using straight-line spot weld seam.
