Front Longitudinal Member Cross Panel, Replacing: Installing: Welding

WARNING: This page is about a different car, the 2025 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.

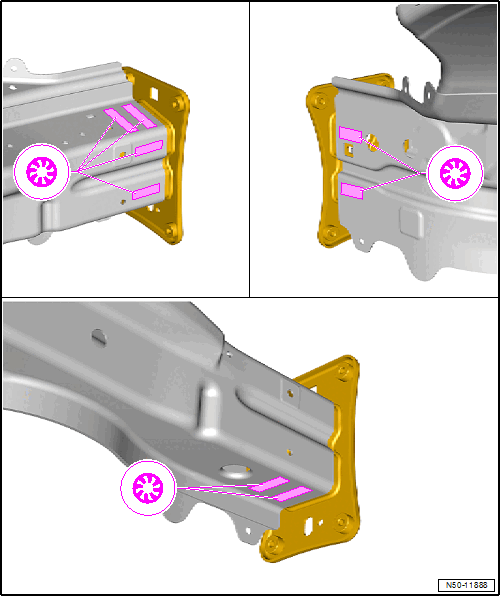

Fig 1: Front Longitudinal Member Cross Panel Installation

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Fit the new part to the vehicle resting on the Alignment Bracket Set and secure.

-- Check the fit with attachments.

-- Weld in the front longitudinal member cross panel using a gas-shielded arc plug weld seam.
