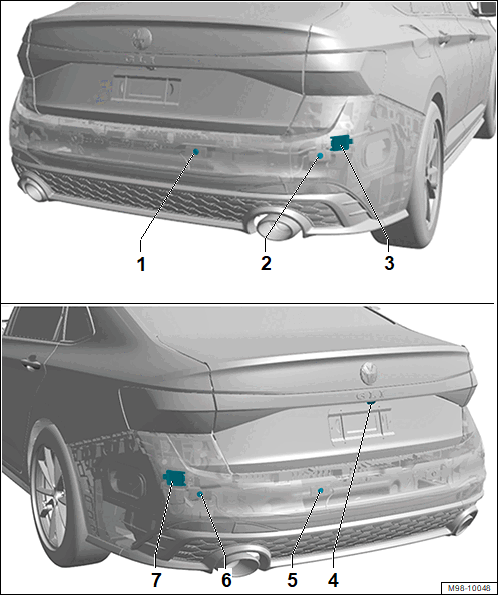

Component Location Overview - Sensors And Control Modules In Rear Section Of Vehicle

WARNING: This page is about a different car, the 2025 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Right Rear Center Parking Aid Sensor -G205-
- Refer to PARKING AID / PARALLEL PARKING ASSIST / AUTONOMOUS PARKING
- Refer to REAR PARKING AID SENSORS -G203- / -G204- / -G205- / -G206-, REMOVING AND INSTALLING
Right Rear Parking Aid Sensor -G206-
- Refer to PARKING AID / PARALLEL PARKING ASSIST / AUTONOMOUS PARKING
- Refer to REAR PARKING AID SENSORS -G203- / -G204- / -G205- / -G206-, REMOVING AND INSTALLING
Blind Spot Detection Control Module -J1086-
Rear Lid Handle -EX37-
- With Rearview Camera -R189-
- Refer to REARVIEW CAMERA SYSTEM
- Removing and Installing. Refer to Rearview Camera -R189-, REMOVING AND INSTALLING .
Left Rear Center Parking Aid Sensor -G204-
- Refer to PARKING AID / PARALLEL PARKING ASSIST / AUTONOMOUS PARKING
- Refer to REAR PARKING AID SENSORS -G203- / -G204- / -G205- / -G206-, REMOVING AND INSTALLING
Left Rear Parking Aid Sensor -G203-
- Refer to PARKING AID / PARALLEL PARKING ASSIST / AUTONOMOUS PARKING
- Refer to REAR PARKING AID SENSORS -G203- / -G204- / -G205- / -G206-, REMOVING AND INSTALLING
Blind Spot Detection Control Module 2 -J1087-
