Windshield Washer Pump, Removing And Installing: Removing

WARNING: This page is about a different car, the 2025 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.

-- Turn off the ignition and all electrical equipment.

-- Remove the ignition key, if equipped.

-- Remove the left front wheel housing liner. Refer to FRONT WHEEL HOUSING LINER, REMOVING AND INSTALLING .

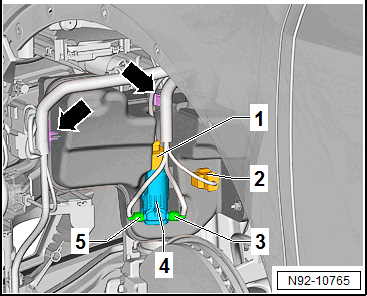

-- Release and disconnect the connector -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Release and remove the washer fluid hoses -3- and -5- from the Windshield and Rear Window Washer Pump -V59- -4-.

-- Remove the Windshield and Rear Window Washer Pump -V59- -4- upward from the washer fluid reservoir.
