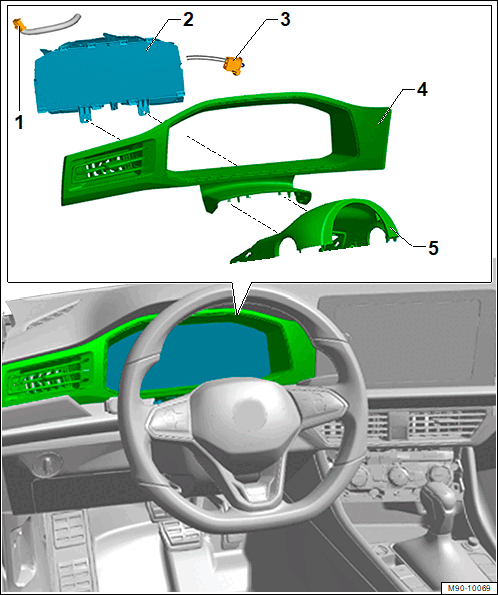

Overview - Instrument Cluster
WARNING: This page is about a different car, the 2025 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.
- Connector
- For the instrument cluster
- Instrument Cluster -KX2-
- With Instrument Cluster Control Module -J285-
- Removing and Installing. Refer to Instrument Cluster -KX2-, REMOVING AND INSTALLING .
- MOST Bus Connector
- For the fully digital instrument cluster
- Driver Side Instrument Panel Decorative Trim
- Removing and installing, refer to UPPER DRIVER SIDE DECORATIVE TRIM FOR INSTRUMENT PANEL, REMOVING AND INSTALLING .
- Upper Steering Column Trim Panel
- Removing and installing. Refer to UPPER STEERING COLUMN TRIM PANEL, REMOVING AND INSTALLING .
