Radio/Navigation System Frame, Removing And Installing: Removing

WARNING: This page is about a different car, the 2025 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the display cover. Refer to DISPLAY COVER, REMOVING AND INSTALLING .

-- Remove the Front Information Display Control Head -J685-. Refer to COMPONENT LOCATION OVERVIEW - INFOTAINMENT SYSTEM .

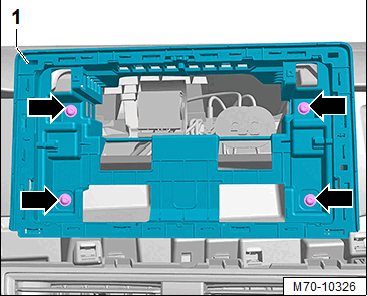

-- Remove the bolts -arrows-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the radio/navigation system frame -1- from the instrument panel.
