Coupling Rod And Stabilizer Bar Bearing, Visual Inspection For Damage

Front Axle

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

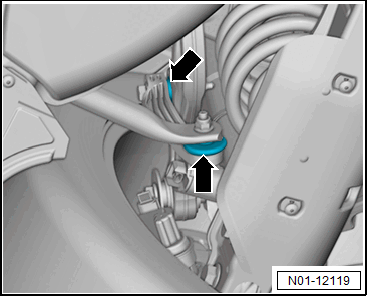

-- Check the ball joint boots on the coupling rod -arrows- for damage.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

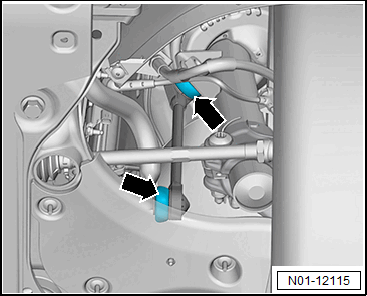

-- Check the stabilizer bar bearing -arrow- for damage.

Rear Axle

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

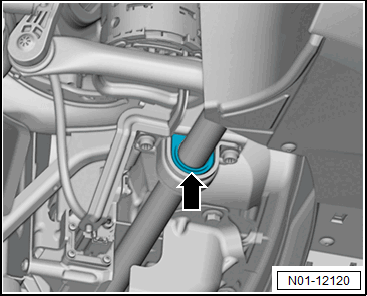

-- Check the ball joint boots on the coupling rod -arrows- for damage.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

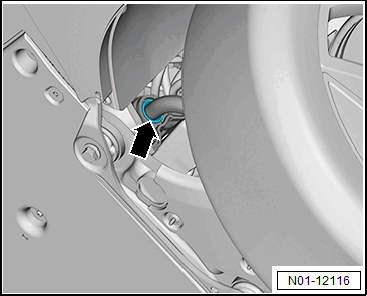

-- Check the stabilizer bar bearing -arrow- for damage.
