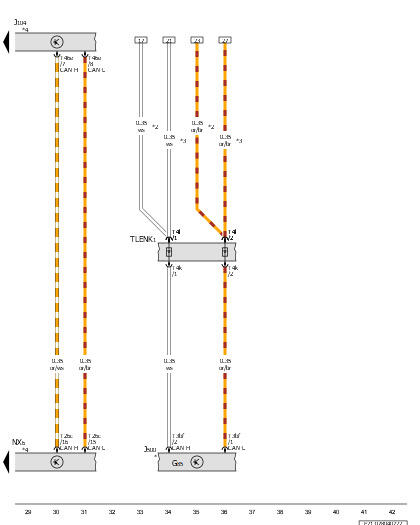

Abs Control Module, Power Steering Control Module, Brake Booster

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

G85

Steering Angle Sensor

J104

ABS Control Module

J500

Power Steering Control Module

NX6

Brake Booster

T3bf

3-Pin Connector, Black

T4k

4-Pin Connector, Black

T4l

4-Pin Connector, Black

T26c

26-Pin Connector, Black

T46e

46-Pin Connector, Black

TLENK1

Steering Coupling Point 1

*

Refer to the Applicable Steering Wiring Diagram

*2

For LHD Vehicles

*3

For RHD Vehicles

*4

Refer to Applicable Brake System Wiring Diagram
