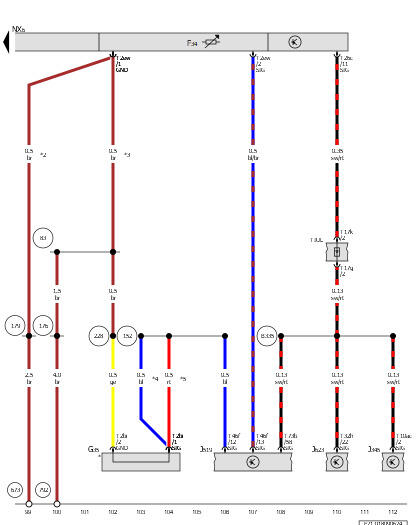

Right Front Brake Pad Wear Sensor, Towing Recognition Control Module, Vehicle Electrical System Control Module, Engine/Motor Control Module, Brake Booster
F34
Brake Fluid Level Warning Switch
G35
Right Front Brake Pad Wear Sensor
J345
Towing Recognition Control Module
J519
Vehicle Electrical System Control Module
J623
Engine/Motor Control Module
NX6
Brake Booster
T2bi
2-Pin Connector, Black
T2ew
2-Pin Connector, Black
T10ac
10-Pin Connector, Black
T17g
17-Pin Connector, Red
T17k
17-Pin Connector, Red
T26c
26-Pin Connector, Black
T32h
32-Pin Connector, Blue
T46f
46-Pin Connector, Black
T73b
73-Pin Connector, Black
TIUL
Coupling Point in Interior, Bottom Left
83
Ground Connection 1 (in Right Front Wiring Harness)
152
Ground Connection 2 (in Front Wiring Harness)
176
Ground Connection (in Right Headlamp Wiring Harness)
179
Ground Connection (in Left Headlamp Wiring Harness)
228
Connection (in Wiring Harness)
673
Ground Connection 3 on Left Front Longitudinal Member
792
Ground Connection in Right Front Wheel Housing
B335
Connection 54 (in Main Wiring Harness) 1
*
Pre-Wired Component
*2
For LHD Vehicles
*3
For RHD Vehicles
*4
For Vehicles Without Adaptive Chassis
*5
For Vehicles with Adaptive Chassis
