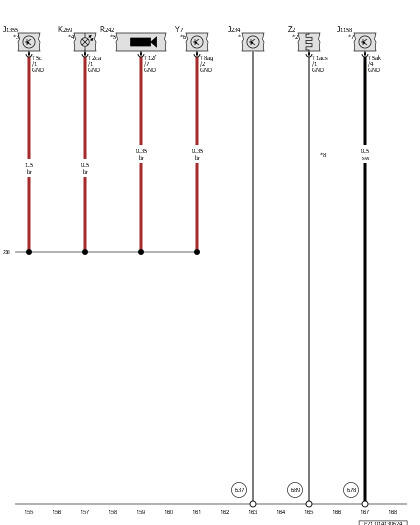

Airbag Control Module, Steering Wheel Touch Recognition Control Module, Roof System Control Module, Right Front FOOTWELL Lamp, Driver Assistance Systems Front Camera, Automatic Dimming Interior Rearview Mirror, Windshield Defogger

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

J234

Airbag Control Module

J1158

Steering Wheel Touch Recognition Control Module

J1355

Roof System Control Module

K269

Right Front Footwell Lamp

R242

Driver Assistance Systems Front Camera

T1acs

1-Pin Connector, Black

T2ca

2-Pin Connector, Black

T5ak

5-Pin Connector, Black

T5c

5-Pin Connector, Black

T8ag

8-Pin Connector, Black

T12f

12-Pin Connector, Black

T140a

140-Pin Connector, Yellow

Y7

Automatic Dimming Interior Rearview Mirror

Z2

Windshield Defogger

238

Ground Connection 1 (in Interior Wiring Harness)

637

Airbag Control Module Ground Connection

678

Ground Connection on Steering Wheel

689

Ground Connection on Roof, Center Front

*

Refer to Applicable Airbag Wiring Diagram

*2

Refer to Applicable Windshield Defogger Wiring Diagram

*3

Refer to the Applicable Roof Shade Wiring Diagram

*4

Refer to Applicable Wiring Diagram for Interior Lamps

*5

Refer to the Applicable Driver Assistance Systems Front Camera Wiring Diagram

*6

Refer to the Applicable Interior Rearview Mirror Wiring Diagram

*7

Refer to Applicable Wiring Diagram for Multifunction Steering Wheel

*8

Flat Conductor
