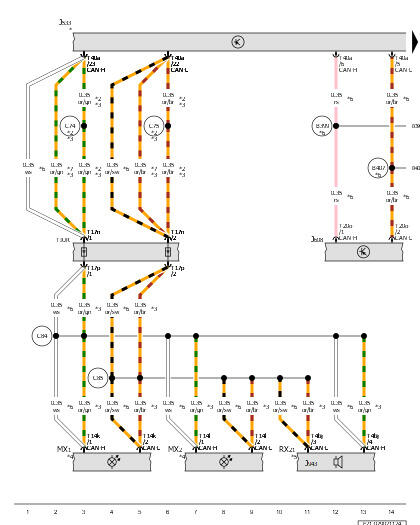

Data Bus On Board Diagnostic Interface, Special Purpose Vehicle Control Module, Left Front Headlamp, Right Front Headlamp, Engine Sound Generator Module 1
J533
Data Bus on Board Diagnostic Interface
J608
Special Purpose Vehicle Control Module
J943
Engine Sound Generator Control Module
MX1
Left Front Headlamp
MX2
Right Front Headlamp
RX21
Engine Sound Generator Module 1
T4bj
4-Pin Connector, Black
T14k
14-Pin Connector, Black
T14l
14-Pin Connector, Black
T17n
17-Pin Connector, Brown
T17p
17-Pin Connector, Brown
T20o
20-Pin Connector, Black
T40a
40-Pin Connector, Black
TIUR
Coupling Point in Interior, Bottom Right
B399
Comfort System CAN Bus, High Connection 3 (in Main Wiring Harness)
B407
Comfort System CAN Bus, Low Connection 2 (in Main Wiring Harness)
C74
Connection 1 (CAN Bus Variable Headlamps AFS, High) in Main Wiring Harness
C75
Connection 1 (CAN Bus Variable Headlamps AFS, Low) in Main Wiring Harness
C84
Connection 1 (CAN Bus Variable Headlamps AFS, High) in Engine/Motor Compartment
C85
Connection 1 (CAN Bus Variable Headlamps AFS, Low) in Engine/Motor Compartment
*
Refer to Applicable Wiring Diagram for Data Bus Networking
*2
Through November 2022
*3
For Vehicles Without UNECE Cyber Security
*4
Refer to Applicable Wiring Diagram for Headlamps
*5
Refer to the Applicable Engine Sound Generator Wiring Diagram
*6
For Vehicles with UNECE Cyber Security
*7
From November 2022
