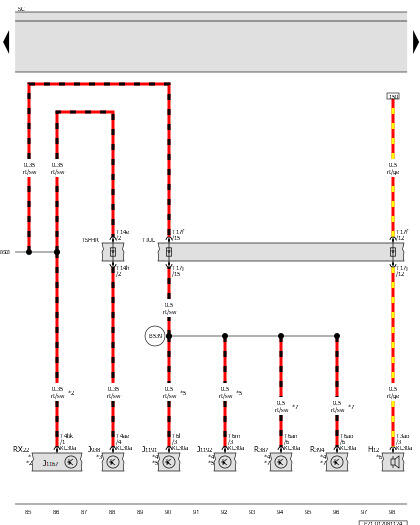

Alarm Horn, Power Rear Lid Opening Control Module, Burglary Protection Control Module, Burglary Protection Control Module 2, Engine Sound Generator Module 2, Antenna For External Communication With Vehicle, Antenna 2 For External Communication With Vehicle, Fuse Panel C
H12
Alarm Horn
J938
Power Rear Lid Opening Control Module
J1167
Engine Sound Generator Control Module 2
J1191
Burglary Protection Control Module
J1192
Burglary Protection Control Module 2
RX22
Engine Sound Generator Module 2
R387
Antenna for External Communication with Vehicle
R394
Antenna 2 for External Communication with Vehicle
SC
Fuse Panel C
T3ao
3-Pin Connector, Black
T4ae
4-Pin Connector, Black
T4bk
4-Pin Connector, Black
T6an
6-Pin Connector, Black
T6ao
6-Pin Connector, Black
T6l
6-Pin Connector, Black
T6m
6-Pin Connector, Black
T14e
14-Pin Connector, Black
T14h
14-Pin Connector, Black
T17f
17-Pin Connector, Brown
T17j
17-Pin Connector, Brown
TIUL
Coupling Point in Interior, Bottom Left
TSFHR
Coupling Point on Right Rear Bumper
B503
Positive Connection 7 (30a) (in Interior Wiring Harness)
B539
Connection 30 (in Main Wiring Harness)
*
Refer to the Applicable Engine Sound Generator Wiring Diagram
*2
For USA Only
*3
Refer to Applicable Power Rear Lid Wiring Diagram
*4
Refer to the Applicable Access/Start Authorization System Wiring Diagram
*5
For Vehicles Without UNECE Cyber Security
*6
Refer to the Applicable Anti-Theft Alarm System Wiring Diagram
*7
For Vehicles with UNECE Cyber Security
