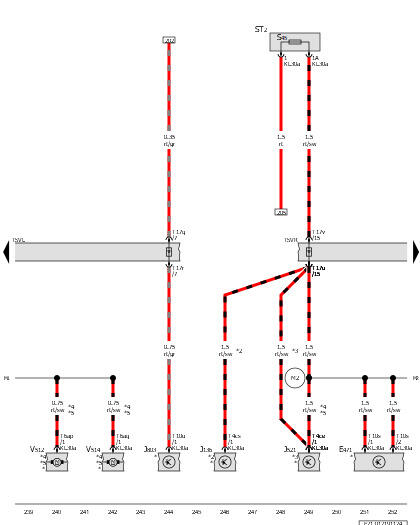

Front Passenger Seat Adjustment Control Head, Memory Seat/Steering Column Adjustment Control Module, Front Passenger Memory Seat Control Module, Left Front Massaging Seat Control Module, Fuse Panel 2, Left Front Seat Backrest Fan 1, Left Front Seat Cushion Fan 1
E471
Front Passenger Seat Adjustment Control Head
J136
Memory Seat/Steering Column Adjustment Control Module
J521
Front Passenger Memory Seat Control Module
J803
Left Front Massaging Seat Control Module
ST2
Fuse Panel 2
S45
Driver Power Seat Adjustment Circuit Breaker 2
T4ce
4-Pin Connector, Black
T4cs
4-Pin Connector, Black
T6ap
6-Pin Connector, Black
T6aq
6-Pin Connector, Black
T10s
10-Pin Connector, Black
T10u
10-Pin Connector, Black
T17q
17-Pin Connector, Red
T17r
17-Pin Connector, Red
T17u
17-Pin Connector, Red
T17v
17-Pin Connector, Red
TSVL
Left Front Seat Coupling Station
TSVR
Right Front Seat Coupling Station
V512
Left Front Seat Backrest Fan 1
V514
Left Front Seat Cushion Fan 1
M1
Positive Connection 1 (30) (in Seat Adjustment Wiring Harness)
M2
Positive Connection 2 (30) (in Seat Adjustment Wiring Harness)
*
Refer to Applicable Seat Adjustment Wiring Diagram
*2
For RHD Vehicles
*3
For LHD Vehicles
*4
For USA Only
*5
From October 2023
