Body Front

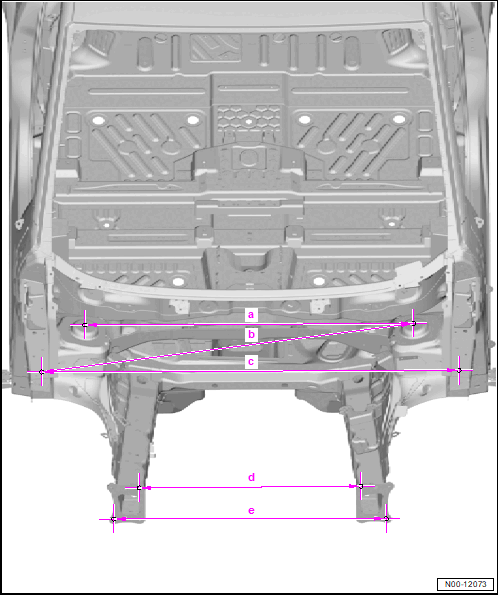

Fig 1: Body Front Dimensions And Measurement Points - Vehicle Front End
GWWN00-12073Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. a - 1155 mm ± 2.0 mm
  2. b - 1155 mm ± 2.0 mm
  3. c - 1467 mm ± 2.0 mm
  4. d - 782 mm ± 2.0 mm
  5. e - 959 mm ± 2.0 mm
