Body Center

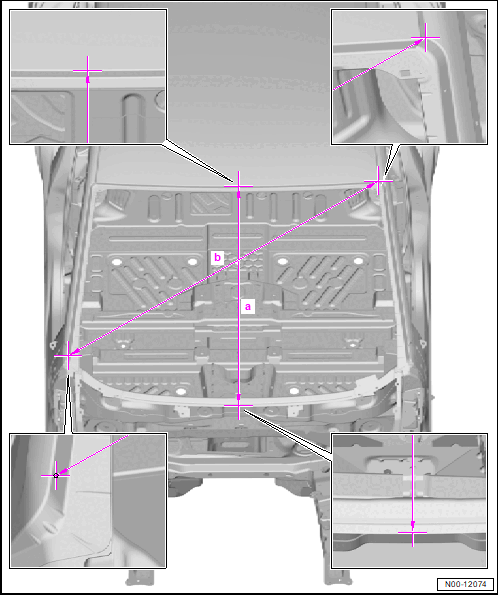

Windshield Opening

Fig 1: Center Body Dimension Measurement Points

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. a - 1021 mm ± 2.0 mm
2. b - 1582 mm ± 2.0 mm

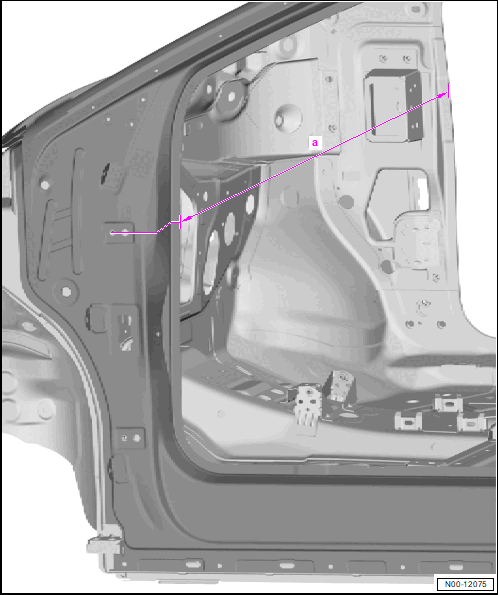

Distance between the A-Pillars

Fig 2: A-Pillar Body Dimension Measurement Points

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. a - 1513 mm ± 2.0 mm
   • Measured on the inside of the body flange.

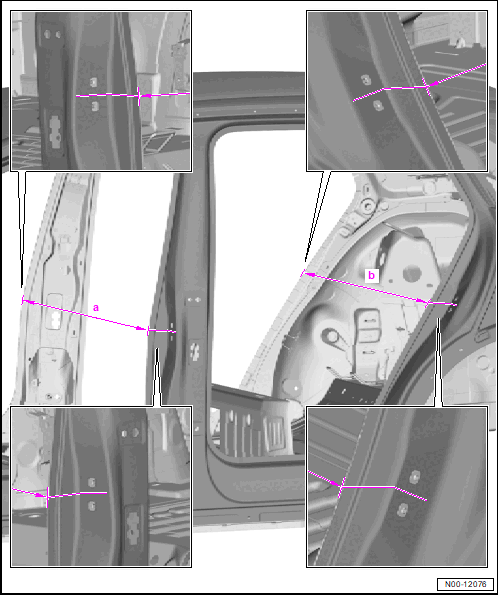

Distance Between B and C-Pillars

Fig 3: B And C-Pillars Dimensions And Measurement Points

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. a - 1479 mm ± 2.0 mm
   • Measured on the inside of the body flange.
2. b - 1473 mm ± 2.0 mm
   • Measured on the inside of the body flange.

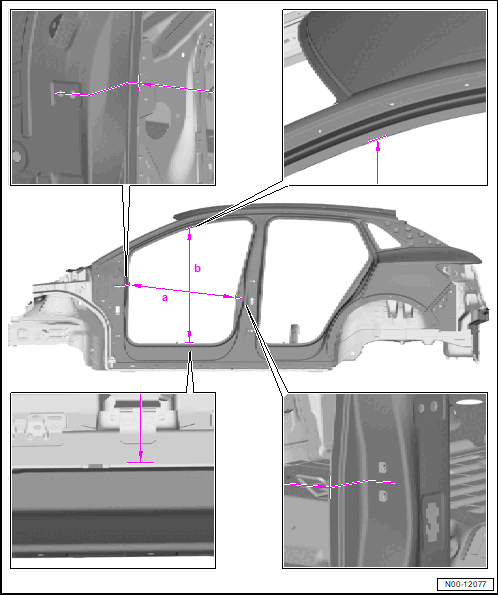

Front Door Opening

Fig 4: Center Body Dimension And Measurement Points - Front Door Opening

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. a - 910 mm ± 2.0 mm
2. b - 961 mm ± 2.0 mm

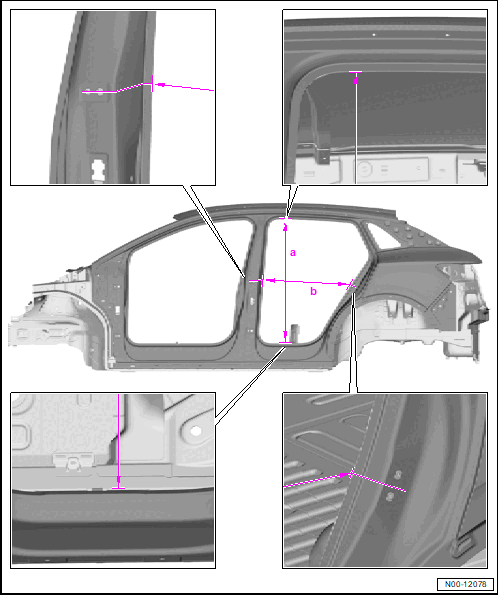

Rear Door Opening

Fig 5: Center Body Dimension And Measurement Points - Rear Door Opening

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. a - 1044 mm ± 2.0 mm
2. b - 757 mm ± 2.0 mm
