Front Wheel Housing, Replacing: Notes
WARNING: This page is about a different car, the 2025 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
If welding, soldering or cutting with spark-producing tools in foamed areas hazardous gases are produced.
- Never weld, solder or separate within 15 mm of molded foam parts.
- Perform the procedures with extraction.
Pay attention to the safety precautions. Refer to General Information; Body Repairs, Body Collision Repair ; Safety Precautions.
- Longitudinal member for upper wheel housing is removed. Refer to UPPER WHEEL HOUSING LONGITUDINAL MEMBER, REPLACING .
- Inner upper wheel housing longitudinal member is removed. Refer to INNER UPPER WHEEL HOUSING LONGITUDINAL MEMBER, REPLACING .

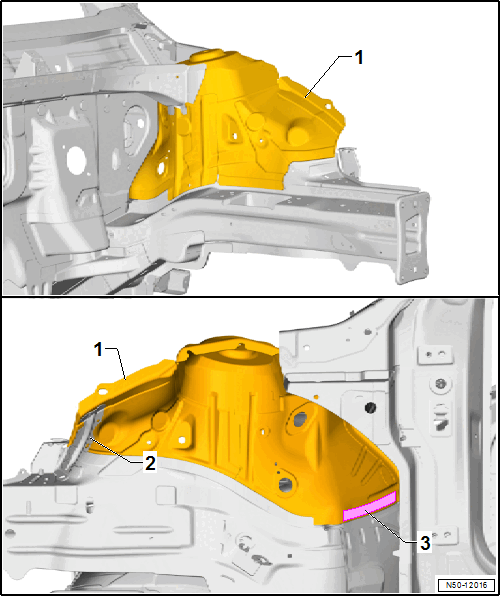

- Front Wheel Housing
- Front Wheel Housing Support
- Not included in the front wheel housing replacement contents, use if necessary.
- Bonded Area
- Cannot be reset during installation
