Front Longitudinal Member, Replacing, Left Partial Section: Notes
WARNING: This page is about a different car, the 2025 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
If welding, soldering or cutting with spark-producing tools in foamed areas hazardous gases are produced.
- Never weld, solder or separate within 15 mm of molded foam parts.
- Perform the procedures with extraction.
Pay attention to the safety precautions. Refer to General Information; Body Repairs, Body Collision Repair ; Safety Precautions.
On the following separation cut the partial replacement is permitted.
NOTE:
If the front longitudinal member is damaged beyond that, then it must be completely replaced.

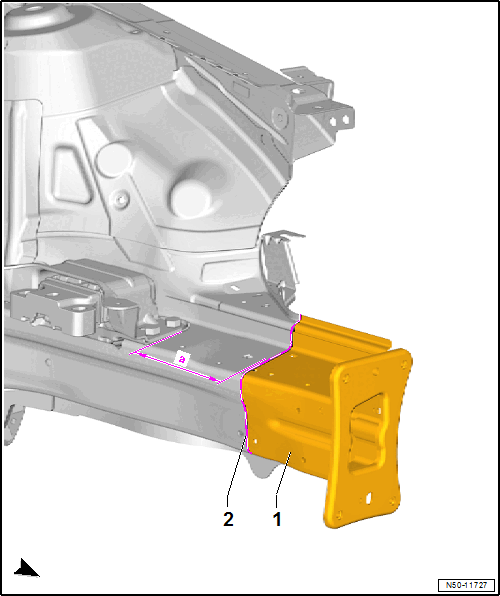

- Front Longitudinal Member
- Separation Cut
- Dimension -a- = 135 mm
