Body Dimensions: Notes
WARNING: This page is about a different car, the 2025 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
The body dimensions are only for inspection. The Alignment Bracket Set or an approved Measuring and Alignment System is standard.
Bolts, plugs, trim panels and attachments must be removed before the measuring procedure.
To prevent leaks, use even measuring points.
Special tools and workshop equipment required
- Alignment Bracket Set
- Measuring and Alignment System

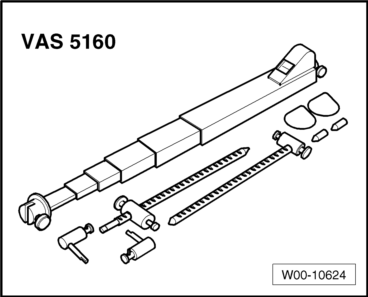

- Telescoping Gauge - 92-260cm :VAS 5160
