Data Bus On Board Diagnostic Interface, Cornering Lamp And Headlamp Range Control Module
WARNING: This page is about a different car, the 2025 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.
J533
Data Bus on Board Diagnostic Interface
J745
Cornering Lamp and Headlamp Range Control Module
T17c
17-Pin Connector, Red
T17l
17-Pin Connector, Red
T20s
20-Pin Connector, Brown
T32a
32-Pin Connector, Black
TIUL
Coupling Point in Interior, Bottom Left
B108
CAN Bus Extended High Connection 1 (in Main Wiring Harness)
B109
CAN Bus Extended Low Connection 1 (in Main Wiring Harness)
*

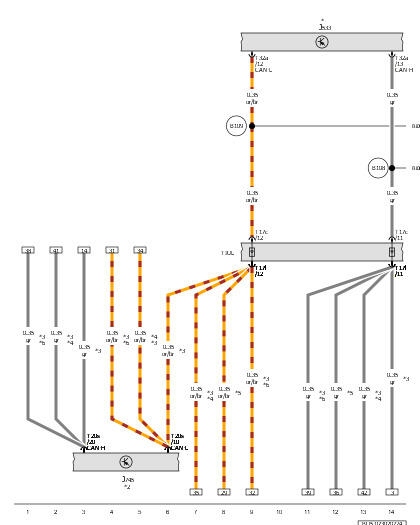

Refer to Applicable Wiring Diagram for Data Bus on Board Diagnostic Interface
*2
Refer to Applicable Wiring Diagram for Headlamps
*3
For Vehicles with Mobile Online Services
*4
For Vehicles with Automatic Transmission
*5
For Vehicles without Mobile Online Services
*6
For Vehicles with a Manual Transmission
