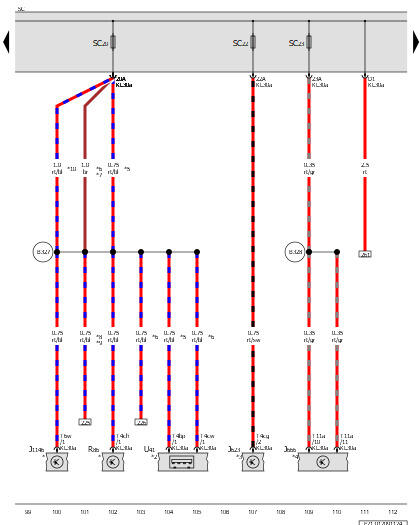

Engine/Motor Control Module, Internet Access Control Module, Mobile Device Charger 1, Cellular Telephone Amplifier, Fuse Panel C, USB Connection 1

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

J623

Engine/Motor Control Module

J666

Internet Access Control Module

J1146

Mobile Device Charger 1

R86

Cellular Telephone Amplifier

SC

Fuse Panel C

SC20

Fuse 20 (On Fuse Panel C)

SC22

Fuse 22 (On Fuse Panel C)

SC23

Fuse 23 (On Fuse Panel C)

T4bp

4-Pin Connector, Red

T4cg

4-Pin Connector, Black

T4ch

4-Pin Connector, Black

T4cw

4-Pin Connector, Blue

T6w

6-Pin Connector, Black

T11a

11-Pin Connector, Black

U41

USB Connection 1

B327

Positive Connection 13 (30a) (in Main Wiring Harness)

B328

Positive Connection 14 (30a) (in Main Wiring Harness)

*

Refer to the Applicable Cell Phone System Wiring Diagram

*2

Refer to the Applicable USB Charging Socket Wiring Diagram

*3

Refer to Applicable Electric Drive System, Engine/Motor Control Module Wiring Diagram

*4

Refer to Applicable Communication Wiring Diagram

*5

Through June 2022

*6

From June 2022

*7

Through March 2024

*8

For USA Only

*9

Through June 2023

*10

From March 2024
