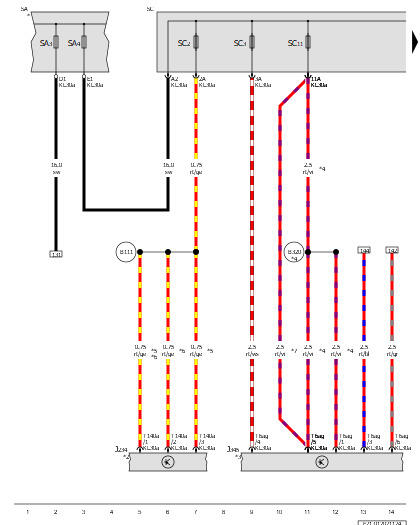

Airbag Control Module, Towing Recognition Control Module, Fuse Panel A, Fuse Panel C

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

J234

Airbag Control Module

J345

Towing Recognition Control Module

SA

Fuse Panel A

SA3

Fuse 3 (On Fuse Panel A)

SA4

Fuse 4 (On Fuse Panel A)

SC

Fuse Panel C

SC2

Fuse 2 (On Fuse Panel C)

SC3

Fuse 3 (On Fuse Panel C)

SC11

Fuse 11 (On Fuse Panel C)

T6ag

6-Pin Connector, Black

T140a

140-Pin Connector, Yellow

B111

Positive Connection 1 (30a) (in Interior Wiring Harness)

B320

Positive Connection 6 (30a) (in Main Wiring Harness)

*

Refer to Applicable Wiring Diagram for Fuses in Engine/Motor Compartment

*2

Refer to Applicable Airbag Wiring Diagram

*3

Refer to the Wiring Diagram for Trailer Towing

*4

Not for USA

*5

For Vehicles Without UNECE Cyber Security

*6

For Vehicles with UNECE Cyber Security

*7

For USA Only
