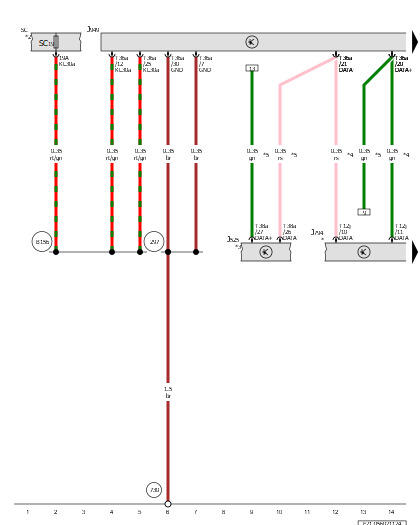

Digital Sound System Control Module, Information Electronics Control Module 1, Control Module For Emergency Call Module And Communication Unit, Fuse Panel C
J525
Digital Sound System Control Module
J794
Information Electronics Control Module 1
J949
Control Module for Emergency Call Module and Communication Unit
SC
Fuse Panel C
SC19
Fuse 19 (On Fuse Panel C)
T12j
12-Pin Connector, Blue
T36a
36-Pin Connector, Black
T38a
38-Pin Connector, Black
297
Ground Connection 12 (in Interior Wiring Harness)
730
Ground Connection 1 on Right Rear Wheel Housing
B156
Positive Connection 30a (in Interior Wiring Harness)
*
Refer to the Applicable Multimedia System Wiring Diagram
*2
Refer to Applicable Wiring Diagram for Fuses in Vehicle Interior
*3
Refer to Applicable Sound System Wiring Diagram
*4
For Vehicles Without UNECE Cyber Security
*5
For Vehicles with UNECE Cyber Security
