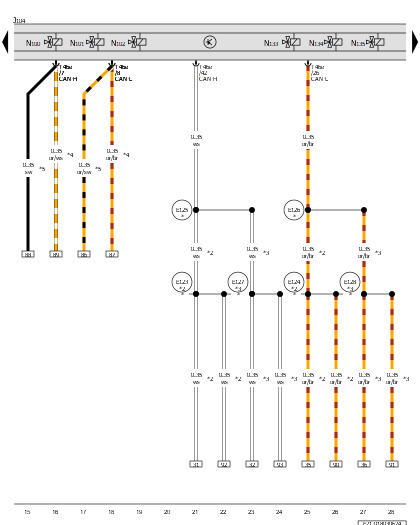

Abs Control Module

GWWE21-018030624Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

J104

ABS Control Module

N100

Right Front ABS Outlet Valve

N101

Left Front ABS Inlet Valve

N102

Left Front ABS Outlet Valve

N133

Right Rear ABS Inlet Valve

N134

Left Rear ABS Inlet Valve

N135

Right Rear ABS Outlet Valve

T46e

46-Pin Connector, Black

E123

CAN Bus Drive High Connection 1 (in Engine Wiring Harness)

E124

CAN Bus Drive Low Connection 1 (in Engine Wiring Harness)

E125

CAN Bus Drive High Connection 2 (in Engine Wiring Harness)

E126

CAN Bus Drive Low Connection 2 (in Engine Wiring Harness)

E127

CAN Bus Drive High Connection 3 (in Engine Wiring Harness)

E128

CAN Bus Drive Low Connection 3 (in Engine Wiring Harness)

Refer to the Applicable Suspension CAN Bus Network Data Bus Wiring Diagram

*2

For LHD Vehicles

*3

For RHD Vehicles

*4

For Vehicles Without UNECE Cyber Security

*5

For Vehicles with UNECE Cyber Security
