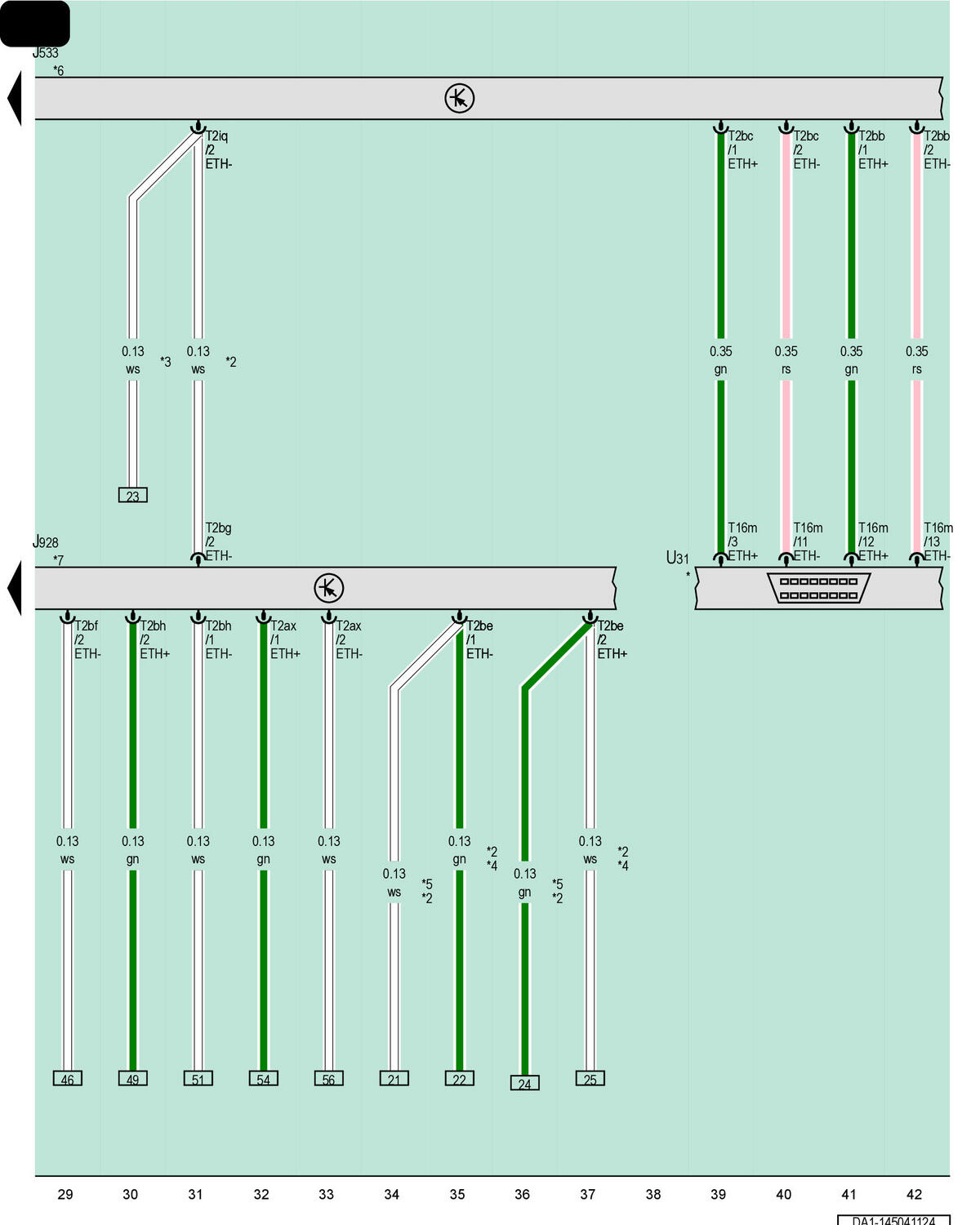

Data Bus On Board Diagnostic Interface, Peripheral Camera Control Module, Diagnostic Connection

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

J533

Data Bus on Board Diagnostic Interface

J928

Peripheral Camera Control Module

T2ax

2-Pin Connector, White

T2bb

2-Pin Connector, White

T2bc

2-Pin Connector, White

T2be

2-Pin Connector, White

T2bf

2-Pin Connector, White

T2bg

2-Pin Connector, White

T2bh

2-Pin Connector, White

T2iq

2-Pin Connector, White

T16m

16-Pin Connector, Black

U31

Diagnostic Connection

*

Refer to Applicable Diagnostic Connector Wiring Diagram

*2

For Vehicles with Peripheral Camera

*3

For Vehicles with Rearview Camera System

*4

Through November 2024

*5

From November 2024

*6

Refer to Applicable Wiring Diagram for Data Bus Networking

*7

Refer to Applicable Peripheral Camera Wiring Diagram
