Selector Shaft Seal, Replacing: Removing

-- Remove the battery tray. Refer to BATTERY TRAY, REMOVING AND INSTALLING .

-- Remove the selector lever cable from the transmission. Refer to SELECTOR LEVER CABLE, REMOVING AND INSTALLING  .

-- Remove the bolt -arrow-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the selector lever -1-.

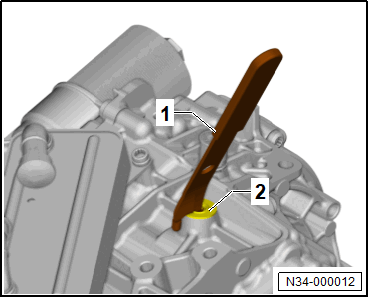

-- Pry out the seal -2- using the Puller - Crankshaft/Power Steering Seal :T20143/1  -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
