Overview - Shift Mechanism

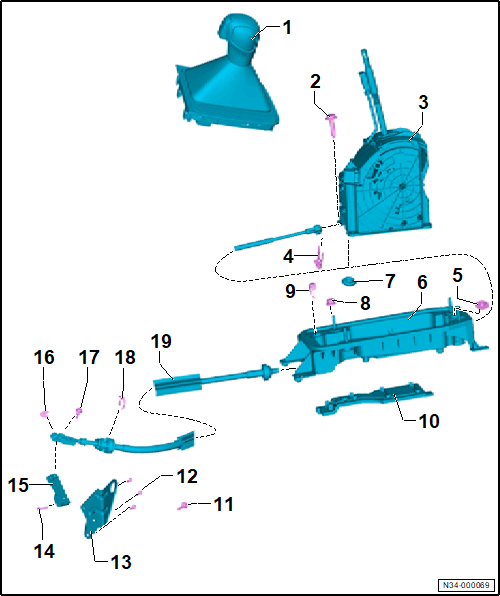

Fig 1: Exploded View Of Shift Mechanism, Gearshift Knob

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Handle with Shift Cover
- Refer to Selector Lever Handle, Removing and Installing .
- Refer to Button in Handle, Moving into Installation Position .
Bolt
- Depending on the equipment/version
- Quantity: 4
- 8 Nm
Selector Lever -E313-
- Refer to Shift Mechanism, Removing and Installing .
Lock Washer
- Depending on the equipment/version
- Replace after removing
Nut
- Depending on the equipment/version
- Quantity: 4
- 8 Nm
Shifter Housing
Plugs
Nut
- Depending on the equipment/version
- Quantity: 4
- 8 Nm
Lock Washer
- Depending on the equipment/version
Cover
- Depending on the equipment/version
- Replace after removing
Bolt
- Depending on the equipment/version
- Quantity: 2
- 20 Nm + 90°
Bolt
- Depending on the equipment/version
- Quantity: 3
- 8 Nm
Cable Bracket
- Depending on the equipment/version
- Refer to Selector Lever Cable, Removing and Installing .
Bolt
- Replace after removing
- 13 Nm
Shift Lever
Lock Washer
- Depending on the equipment/version
- Replace after removing
Bolt
- Replace after removing
- 13 Nm
Clip
- Depending on the equipment/version
- Replace after removing
Selector Lever Cable
- Refer to Selector Lever Cable, Removing and Installing .
- Refer to Selector Lever Cable, Checking and Adjusting (Bolted Cable Retainer) , or Selector Lever Cable, Checking and Adjusting (Clamped Cable Retainer) .
