Transmission, Securing To Engine/Transmission Holder

Special tools and workshop equipment required

• Transmission Support :VW 353
• Holding Plate :VW309A
• Engine and Gearbox Bracket :VAS 6095A

-- Refer to Transmission, Removing (Gas) , or Transmission, Removing (Diesel)  .

-- Refer to Transmission, Transporting  .

-- Secure the Transmission Support :VW 353  -A- at the Holding Plate :VW309A  -B-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

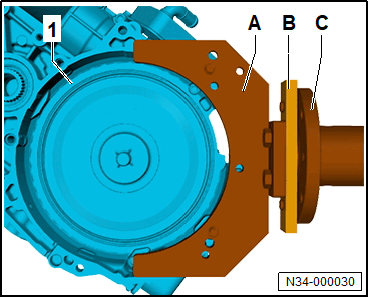

-- Secure the transmission -1- at the Transmission Support :VW 353  -A-.

Conditions

• The help of a second technician is necessary for the following procedure.

-- Insert the Holding Plate :VW309A  -B- in the Engine and Transmission Holder :VAS 6095A  -C-.
