Bevel Box Or Front Axle Differential Lock, Securing To Engine And Transmission Holder

Special tools and workshop equipment required

• Gearbox Support :T10108

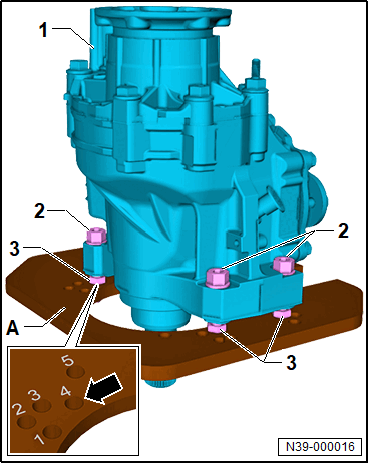

-- Position the nuts -3- on the Gearbox Support :T10108  -A-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Conditions

• Nuts -3- = M12 x 10

-- Position the bevel box -1- on the hole "4" -arrow- in the Gearbox Support :T10108  -A-.

-- Align the bevel box -1-.

-- Secure the bevel box -1- with the bolts -2-.
