Overview - Steering Column

The overview is shown as an example for LHD vehicles. The layout is a mirror image in RHD vehicles.

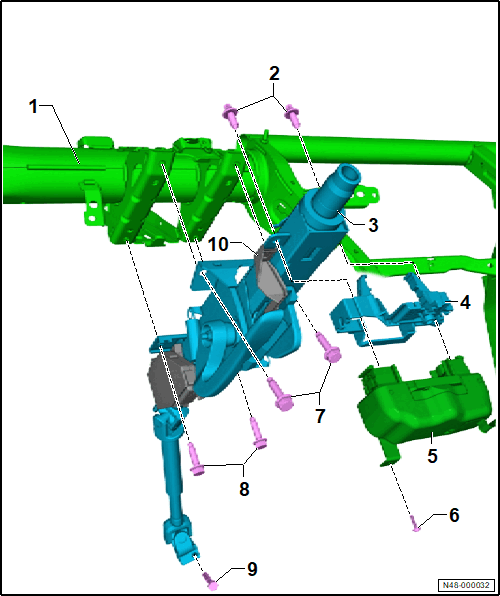

Fig 1: Exploded View Of Steering Column

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Instrument Panel Crossmember
   • Refer to INSTRUMENT PANEL CROSSMEMBER, REMOVING AND INSTALLING .
2. Shear bolt
   • Quantity: 2
3. Steering Column
   • Depending on the equipment/version
   • Refer to Steering Column, Removing and Installing  .
4. Bracket
   • Depending on the equipment/version
5. Electronic Steering Column Lock Control Module -J764-
   • Depending on the equipment/version
   • Refer to ELECTRONIC STEERING COLUMN LOCK CONTROL MODULE -J764-, REMOVING AND INSTALLING, VERSION 2  .
6. Bolt
   • Always replace after removing
   • 20 Nm
7. Bolt
   • Quantity: 2
   • Always replace after removing
   • 20 Nm
8. Bolt
   • Quantity: 2
   • Always replace after removing
   • 20 Nm
9. Bolt
   • Always replace after removing
   • 20 Nm +90°
10. Bracket
