Overview - Data Bus On Board Diagnostic Interface

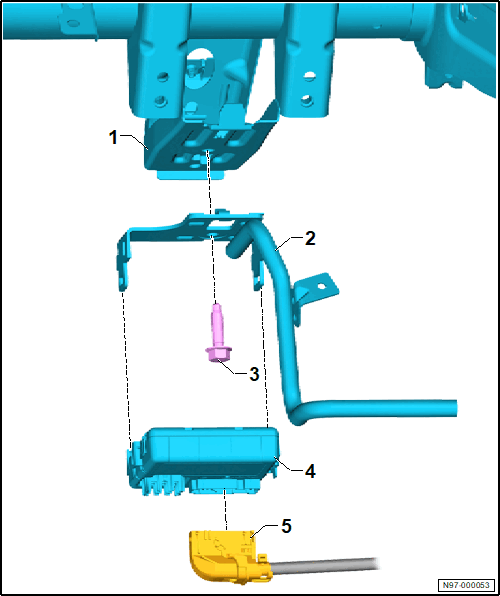

GWWN97-000053Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Instrument Panel Crossmember
  2. Crash Bolster
  3. Bolt
  4. Data Bus on Board Diagnostic Interface -J533-
  5. Connector
