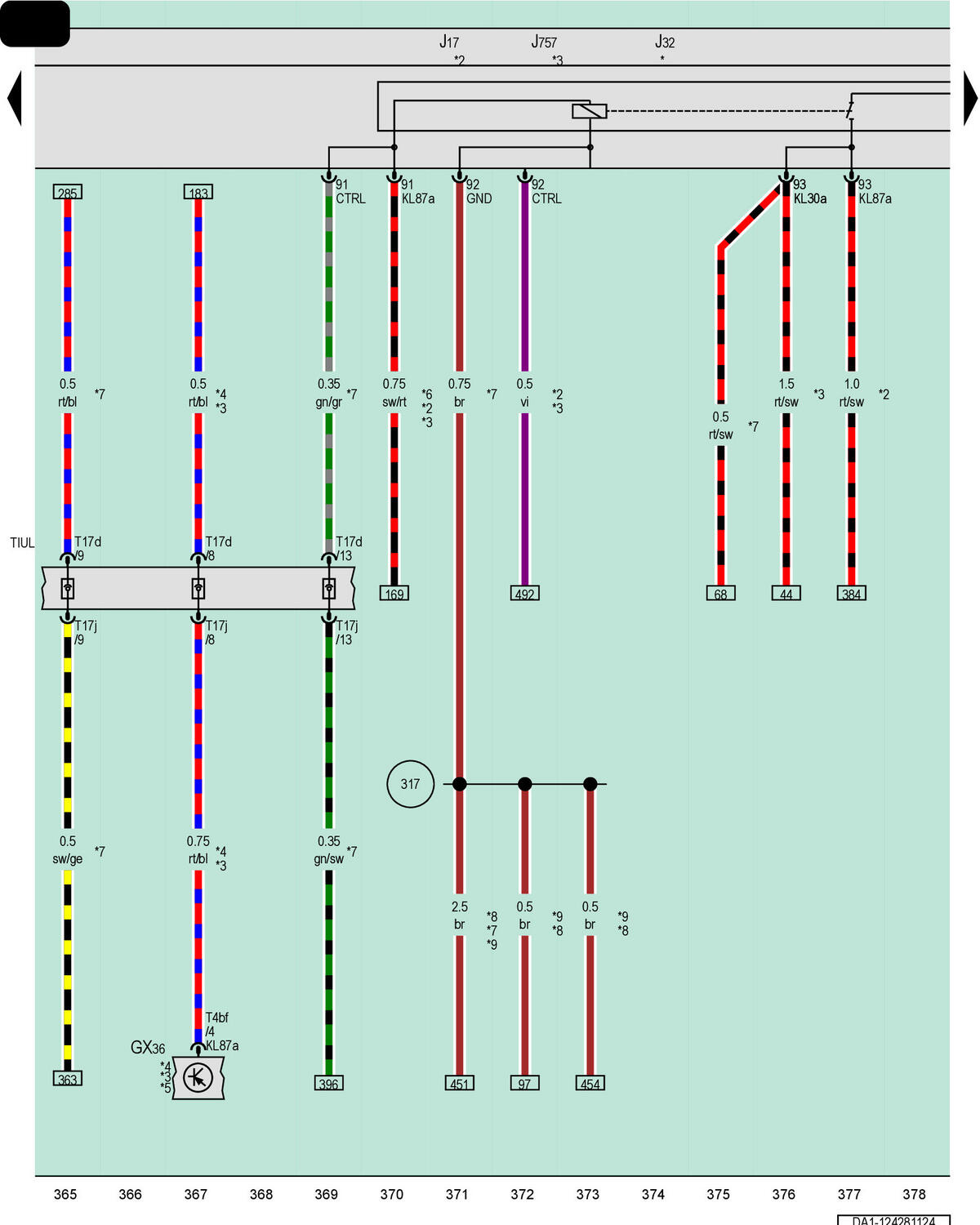

Fuel Tank Leak Detection Module, Fuse Panel B
GX36
Fuel Tank Leak Detection Module
J17
Fuel Pump Relay
J32
A/C Relay
J757
Engine Component Power Supply Relay
SB
Fuse Panel B
T4bf
4-Pin Connector, Black
T17d
17-Pin Connector, Red
T17j
17-Pin Connector, Red
TIUL
Coupling Point in Interior, Bottom Left
317
Ground Connection 7 (in Engine/Motor Compartment Wiring Harness)
*
Refer to Applicable A/C System Wiring Diagram
*2
For Vehicles with a 1.6L Engine
*3
For Vehicles with 2.0L Gasoline Engine
*4
For USA Only
*5
Refer to Applicable Engine Wiring Diagram
*6
For Natural Gas Vehicles
*7
For Vehicles with Hybrid Drive
*8
For Vehicles with Auxiliary Heater
*9
For Vehicles with A 1.0L Gasoline Engine
