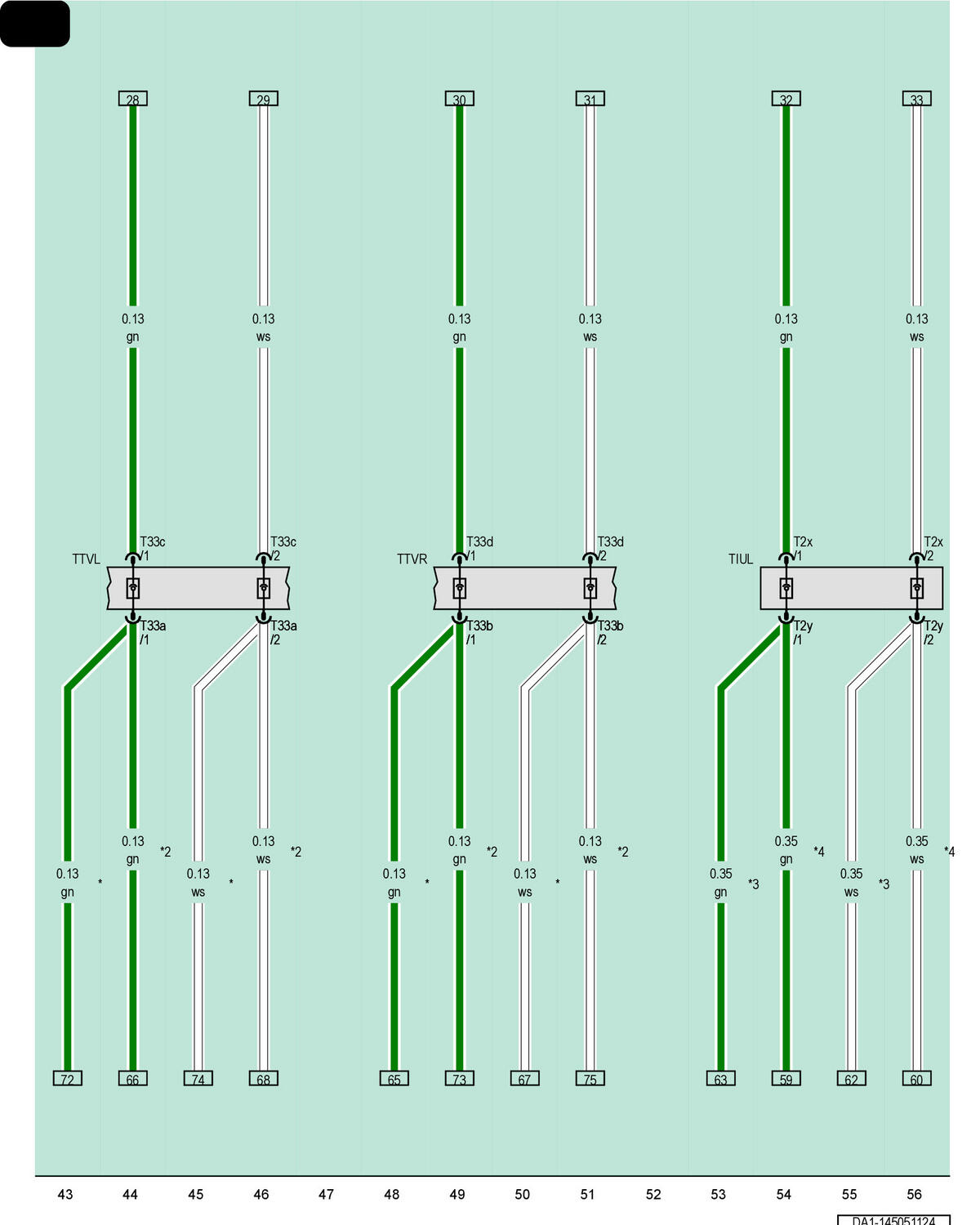

Coupling Point In Interior, Bottom Left, Left Front Door Coupling Point, Right Front Door Coupling Point

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

T2x

2-Pin Connector, White

T2y

2-Pin Connector, White

T33a

33-Pin Connector, Black

T33b

33-Pin Connector, Black

T33c

33-Pin Connector, Yellow

T33d

33-Pin Connector, Yellow

TIUL

Coupling Point in Interior, Bottom Left

TTVL

Left Front Door Coupling Point

TTVR

Right Front Door Coupling Point

*

For RHD Vehicles

*2

For LHD Vehicles

*3

Version 2

*4

Version 1
