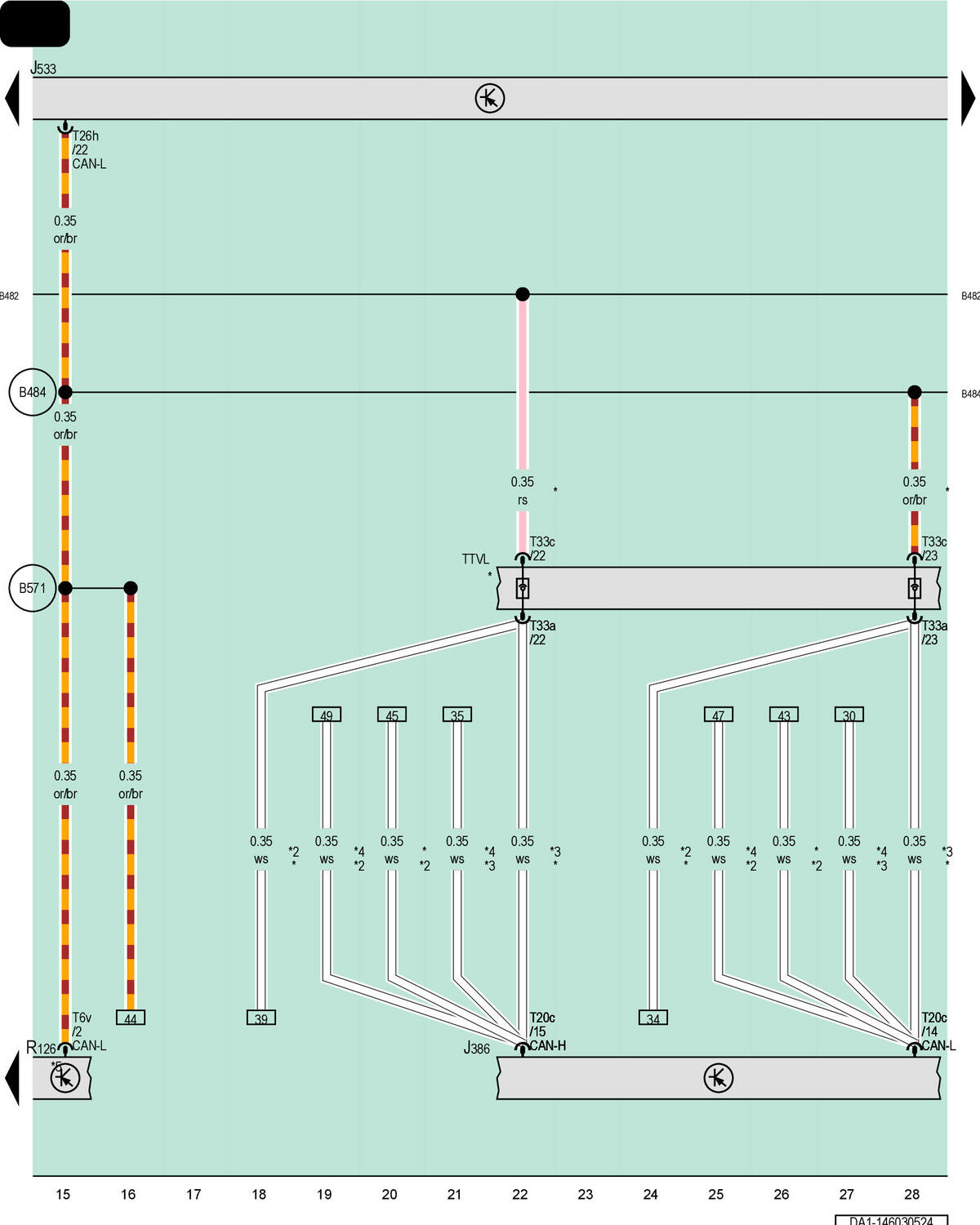

Driver Door Control Module, Data Bus On Board Diagnostic Interface, Telephone BASEPLATE

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

J386

Driver Door Control Module

J533

Data Bus on Board Diagnostic Interface

R126

Telephone Baseplate

T6v

6-Pin Connector, Brown

T20c

20-Pin Connector, White

T26h

26-Pin Connector, Black

T33a

33-Pin Connector, Black

T33c

33-Pin Connector, Yellow

TTVL

Left Front Door Coupling Point

B482

Connection 18 (in Main Wiring Harness)

B484

Connection 20 (in Main Wiring Harness)

B571

Connection 38 (in Main Wiring Harness)

*

For Vehicles with Peripheral Camera

*2

For RHD Vehicles

*3

For LHD Vehicles

*4

For Vehicles without Peripheral Camera

*5

Refer to the Applicable Cell Phone System Wiring Diagram
