Cylinder Block Cooling System Cap, Removing And Installing: Removing

Condition

• The cap and the recommended sealant must be available. Refer to Electronic Parts Information (ETKA).
• The cap must be accessible.

Coolant Cap, Replacing

-- Refer to DRAIN THE COOLANT  .

Continuation for all vehicles

-- Determine the installation depth dimension -a-.

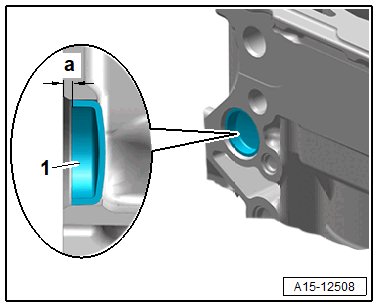

Fig 1: Cap Installation and Installation Position

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the cap -1- using service equipment.
